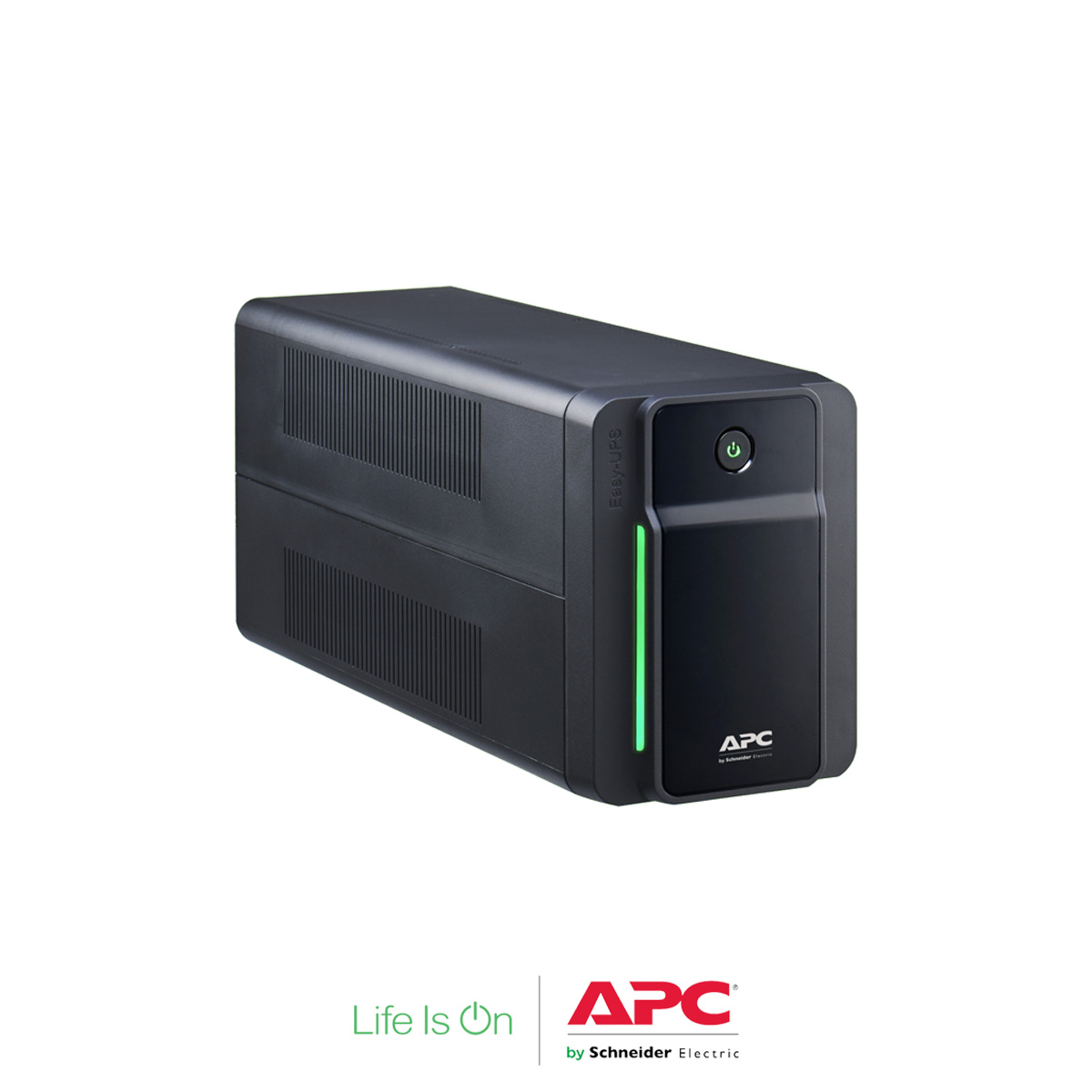

جهاز الإمداد غير المنقطع للطاقة APC Easy UPS BVX 700VA, 230V, AVR,Schuko Sockets
Model: BVX700LI-GR
| Overview | |
| Lead time | Usually in Stock |
| Main | |
| input voltage | 230 V AC 1 phase |
| Main Output Voltage | 230 V AC 1 phase |
| Rated power in W | 360 W |
| Rated power in VA | 700 VA |
| Input Connection Type | Schuko |
| nb of power socket outlets | 2 Schuko |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| General | |
| Max runtime | 120 min |
| Number of power module Free slots | 0 |
| Number of power module Filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Physical | |
| Color | Black |
| Height | 13.8 cm |
| Width | 9.8 cm |
| Depth | 31 cm |
| Net weight | 4.2 kg |
| Mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Input voltage limits | 140…300 V 230 V AC |
| cos phi | 0.51 |
| Output | |
| Maximum Configurable Power in W | 360 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:00:01 360 W |
| Graph display | 1 |
| Half load runtime | 00:06:00 180 W |
| Maximum configurable power in VA | 700 VA |
| Transfer time | 6 ms typical: 10 ms maximum |
| Conformance | |
| product certifications | CE CB |
| Equipment protection policy | Lifetime: 50000 euros |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Runtime Graph
|
| Efficiency | View Efficiency Graph
|
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery life | 2…3 year(s) |
| Replacement battery | APCRBC110 |
| Extended runtime | 0 |
| Communications & Management | |
| Control panel | LED Status display with on line: on battery |
| Alarm | Alarm when on battery: distinctive low battery alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 273 J |
| Packing Units | |
| Package 1 Weight | 4.5 kg |
| Package 1 Height | 22.2 cm |
| Package 1 width | 14.2 cm |
| Package 1 Length | 34.6 cm |
| SCC14 | 10731304404580 |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
