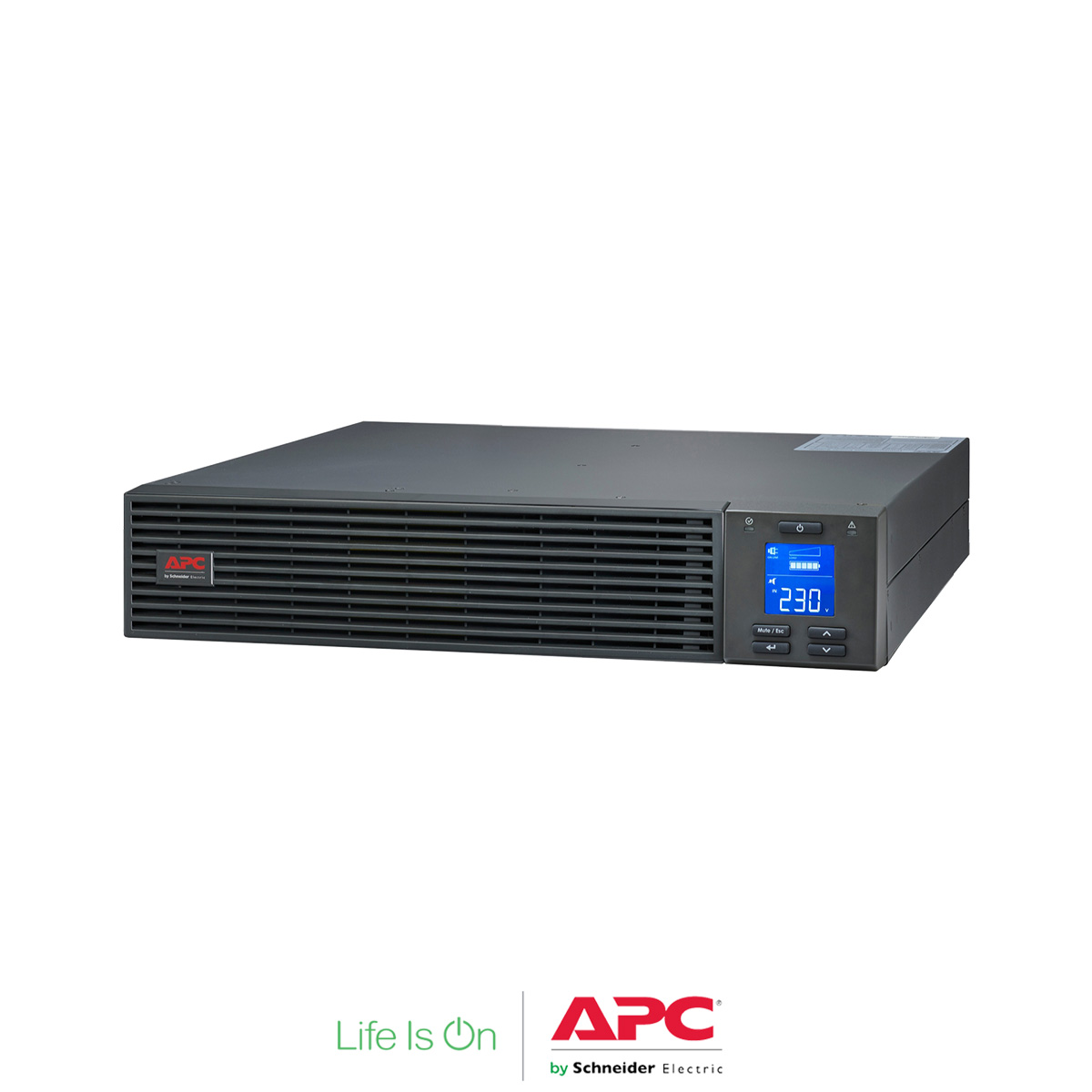

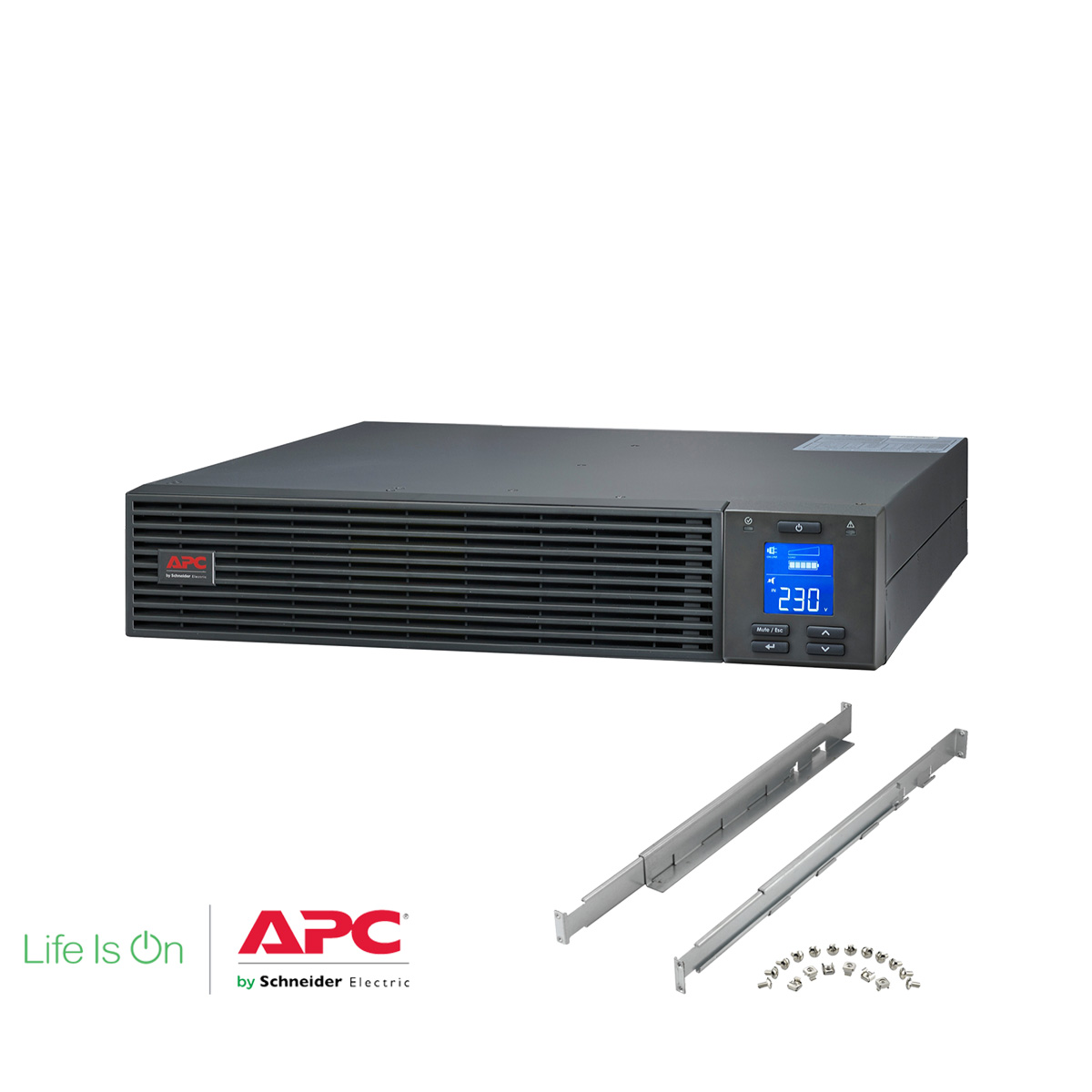

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Easy UPS On-Line SRV 1000VA RM 230V with Rail Kit
Model: SRV1KRIRK
| نظرة عامة | |
| تقديم | UPS عالية الجودة يوفر حماية أساسية للطاقة لظروف الطاقة غير المستقرة ، مما يضمن اتصالاً ثابتًا وموثوقًا به في أكثر اللحظات حرجًا. |
| التوافر | Usually in Stock |
| Main | |
| Main input voltage | 230 V |
| Other input voltage | 220 V 240 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 800 W |
| Rated power in VA | 1000 VA |
| Plug standard | IEC 60320 C14 |
| nb of power socket outlets | 3 IEC 60320 C13 |
| Number of rack unit | 2U |
| Cable length | 1.50 m |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 rack mounting brackets 1 rack mounting support rails user manual |
| Provided equipment | Basic UPS signalling RS-232 cable USB cable CD with software User manual IEC-C14 – Shuko input power cord C13-C14 power cord Rack mounting brackets Rack mounting support rails |
| General | |
| Max runtime | 4 min |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Color | Black |
| Height | 8.6 cm |
| Width | 43.7 cm |
| Depth | 31.2 cm |
| Net weight | 11 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Input voltage limits | 110…285 V half load 160…280 V full load |
| Network frequency | 40…70 Hz auto sensing |
| Output | |
| Maximum Configurable Power in VA | 1000 VC |
| Maximum configurable power in W | 800 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Conformance | |
| product certifications | CE EAC TISI |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | non-condensing 0…95 % |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 372 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Run Time Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 24 V |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBCV200 |
| Battery charger power | 30 W rated |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Control panel | Multifunction LCD status and control console |
| Free slots | 1 |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Package 1 Weight | 13.1 kg |
| Package 1 Height | 21.8 cm |
| Package 1 width | 55.0 cm |
| Package 1 Length | 70.0 cm |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
