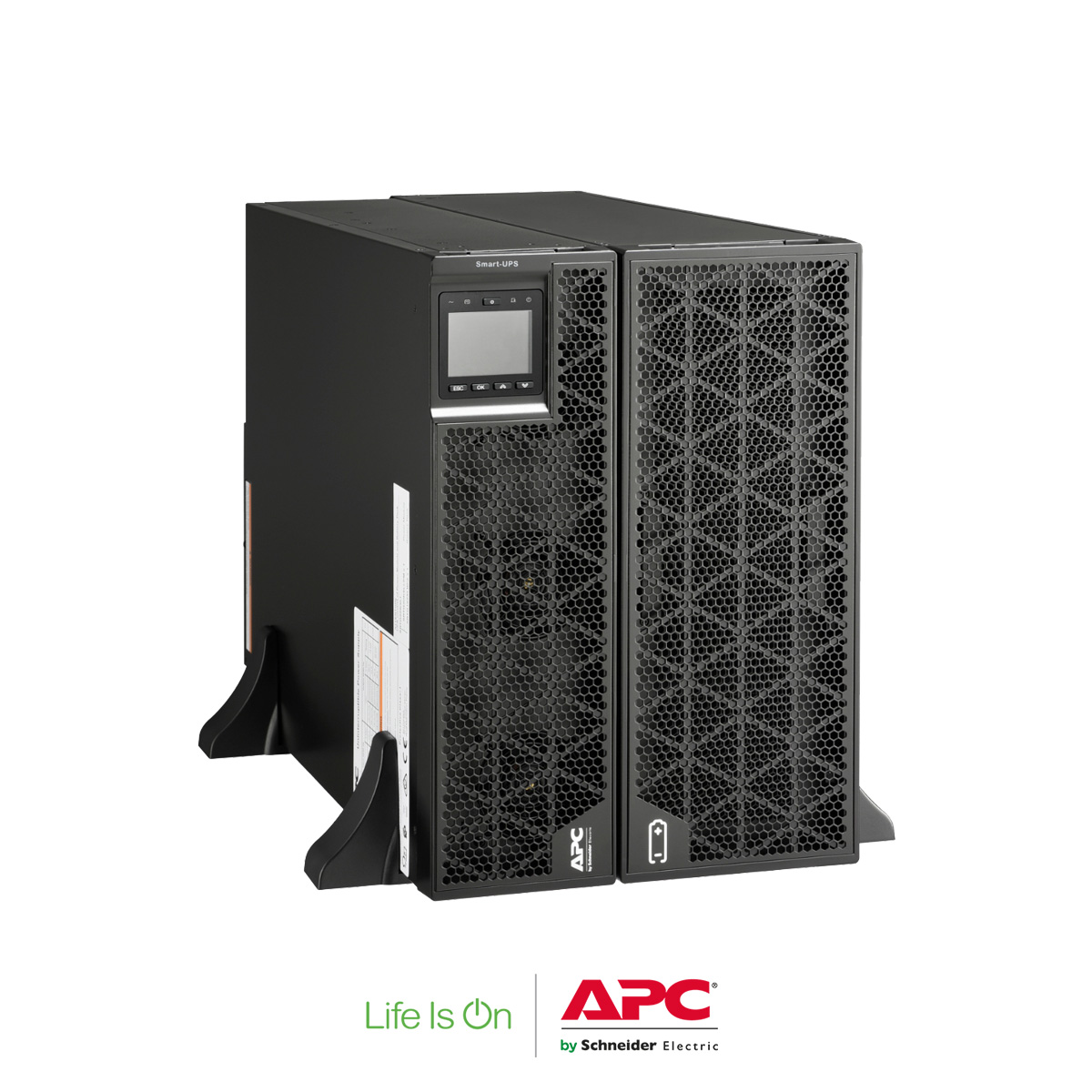

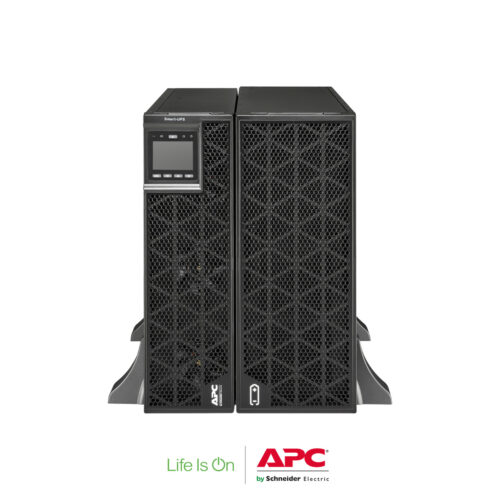

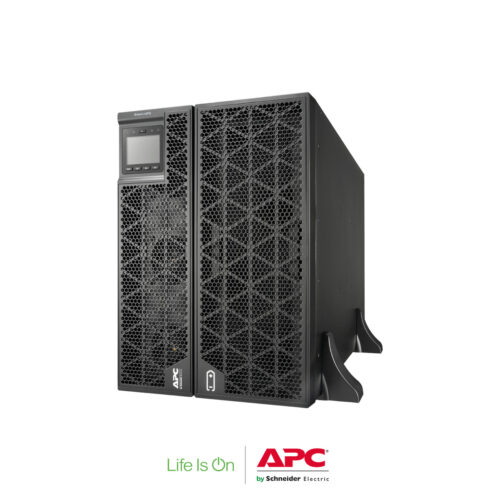

APC Smart UPS Online SRTG 20kVA/20kW SRTG20KXLI

You are here:

Home
APC Smart UPS
APC Smart On-Line UPS
APC Smart Online Tower UPS
APC Smart UPS Online SRTG 20kVA/20kW SRTG20KXLI

APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V…415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

Model: SRTG20KXLI

Download Product Datasheet

تمت الاضافة للقائمة

SKU SRTG20KXLI Categories APC Smart On-Line UPS, APC Smart Online Rack Mount UPS, APC Smart Online Tower UPS, APC Smart UPS Tags APC Smart-UPS, Online UPS, Optimum UPS, Smart UPS, SRTG20KXLI

Main
Main input voltage	380…415 V 3 phases 230 V
Other input voltage	220…240 V
Main output voltage	380…415 V 3 phases 230 V 1 phase
Other output voltage	230 V
Rated power in W	20000 W
Rated power in VA	20000 VA

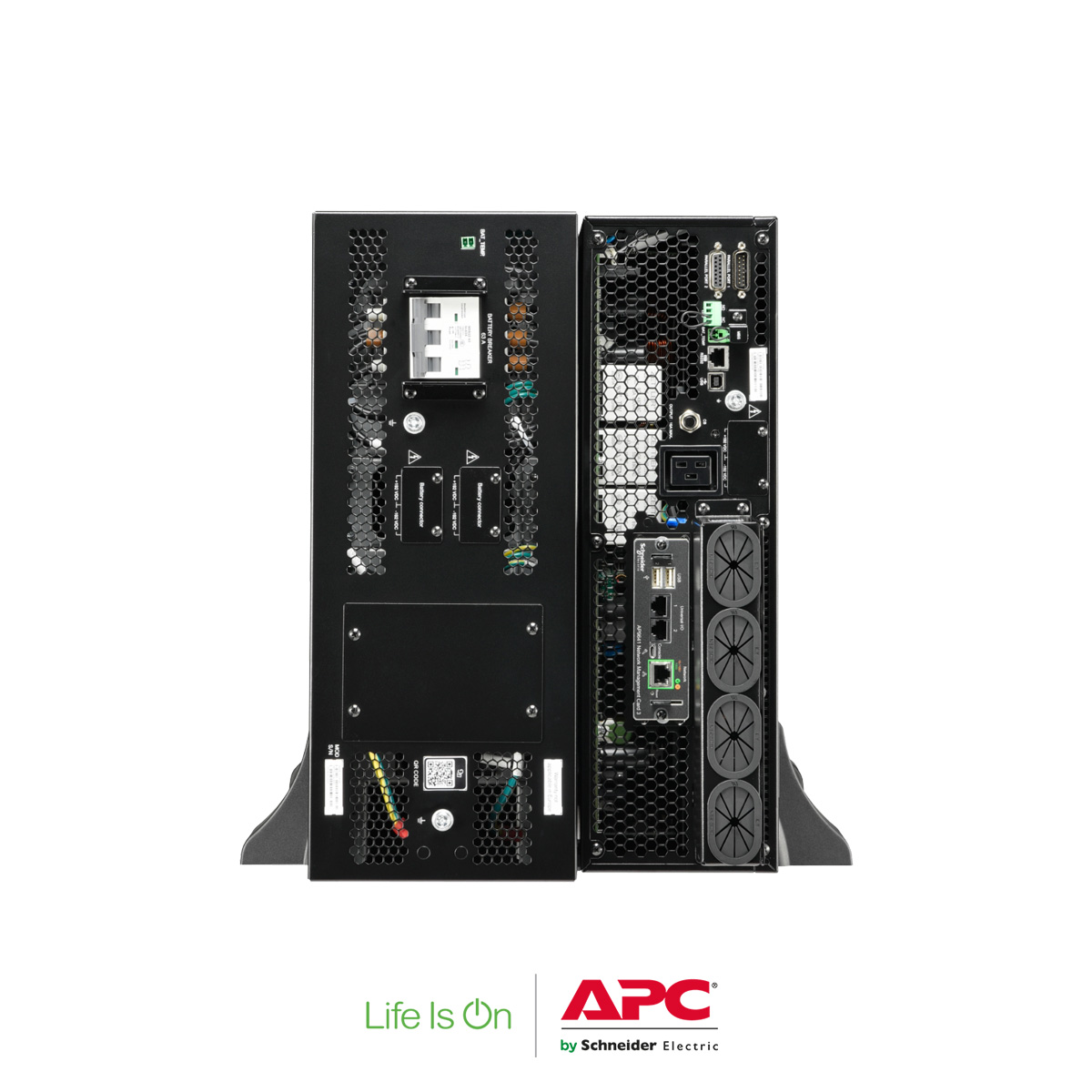

Output Connector type	Hard wire 5 wire (3P + N + E) 1 Hard wire 3-wire (1P + N + E) 1 IEC connector 3-wire (1P + N + E) 1
Number of rack unit	7U
Battery type	Lead-acid battery
Provided equipment	Smart UPS signalling RS-232 cable

General
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No

Physical
Colour	Black
Height	30.6 cm
Width	440 mm
Depth	70.0 cm
Net weight	142.5 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted
Two post mountable	0
USB compatible	No

Input
Network frequency	40…70 Hz auto-sensing
Number of input connectors	1 hard wire 5 wire (3P + N + E) 1 hard wire 3-wire (1P + N + E)
Input voltage limits	160…285 V 380 V 380…415 V
Maximum input current	87 A
Switching current capacity	125 A
Input harmonic distortion	Less than 5 % for full load
Input current	87 A
Load power factor	From 0.9 leading to 1 lagging

Output
Maximum configurable power in W	20000 W
Harmonic distortion	Less than 5 %
Output frequency	50/60 Hz +/- 1 Hz sync to mains
Crest factor	3 : 1
UPS type	Double conversion online
Wave type	Sine wave
Output overload operation	60 seconds at 125% and 30 seconds at 150%
Bypass type	Built-in static bypass
Efficiency	93 % (in battery operation)
Full load runtime	00:03:30 20000 W
Half load runtime	00:09:30 10000 W
Maximum configurable power in VA	20000 VA

Conformance

Product certifications

CB

Standards

EN/IEC 60204-1

EN/IEC 60204-2

Environmental
Ambient air temperature for operation	0…40 °C
Relative Humidity	0…95 % non-condensing
Operating altitude	0…3000 ft
Ambient air temperature for storage	-15…45 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…15000 m
Acoustic level	58 dBA
Heat dissipation	3821 Btu/h
IP degree of protection	IP20

Batteries & Runtime
Run Time	View Run Time Graph
Efficiency	View Efficiency Graph
Number of batteries filled slots	0
Number of battery free slots	0
Battery recharge time	4 h
Number of battery replacement quantity	0
Additional information	Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Battery voltage	+/- 192 V
Battery charger power	2160 W rated
Battery power in VAH	3265 VAh capacity 3265 VAh runtime
Battery life	3…5 year(s)
Replacement battery	APCRBC172
Battery option	SRTG192XLBP2 1 6912 VAh SRTG192XLBP2 2 10617 VAh SRTG192XLBP2 3 13824 VAh SRTG192XLBP2 4 17280 VAh
Extended runtime	1

Communications & Management
Free slots	0
Preinstalled device	Network management card
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off	Yes

Surge Protection and Filtering
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	535 mm
Package 1 width	790 mm
Package 1 Length	590 mm
Package 1 Weight	157.2 kg

Contractual warranty
Warranty	3 years repair or replace (excluding battery) and 2 years for battery
