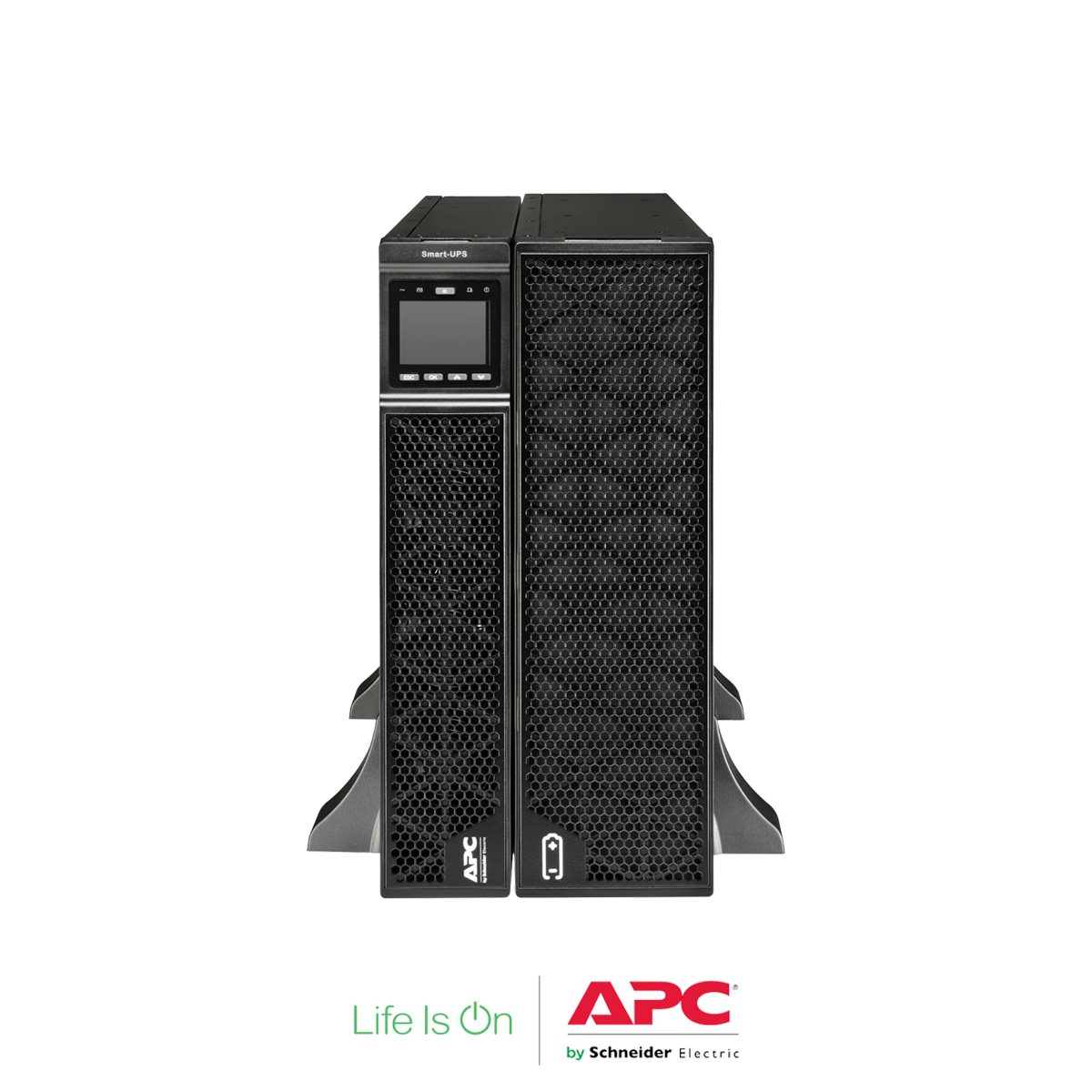

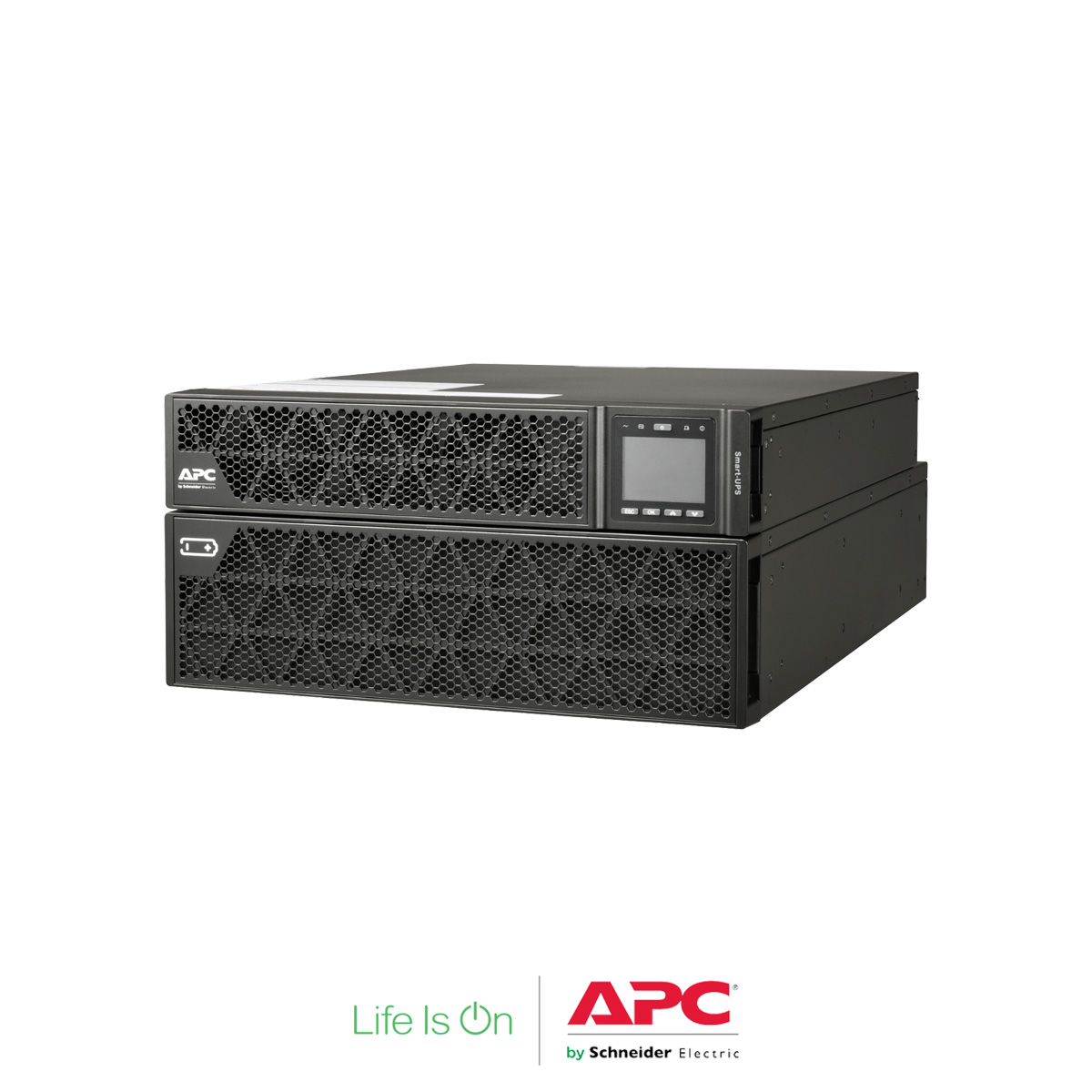

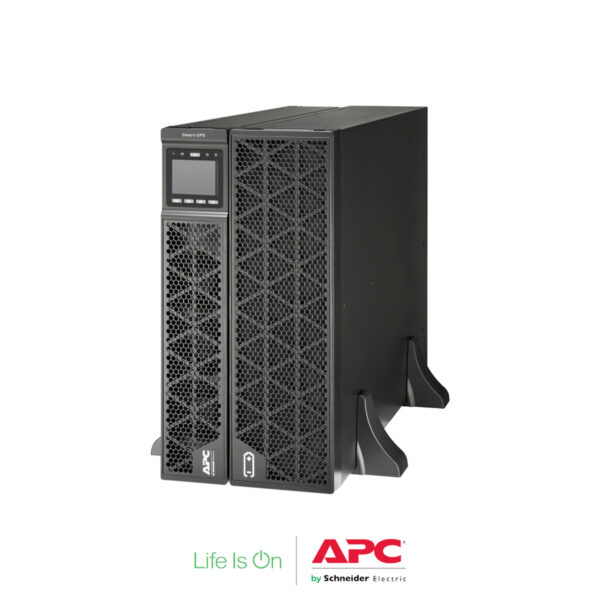

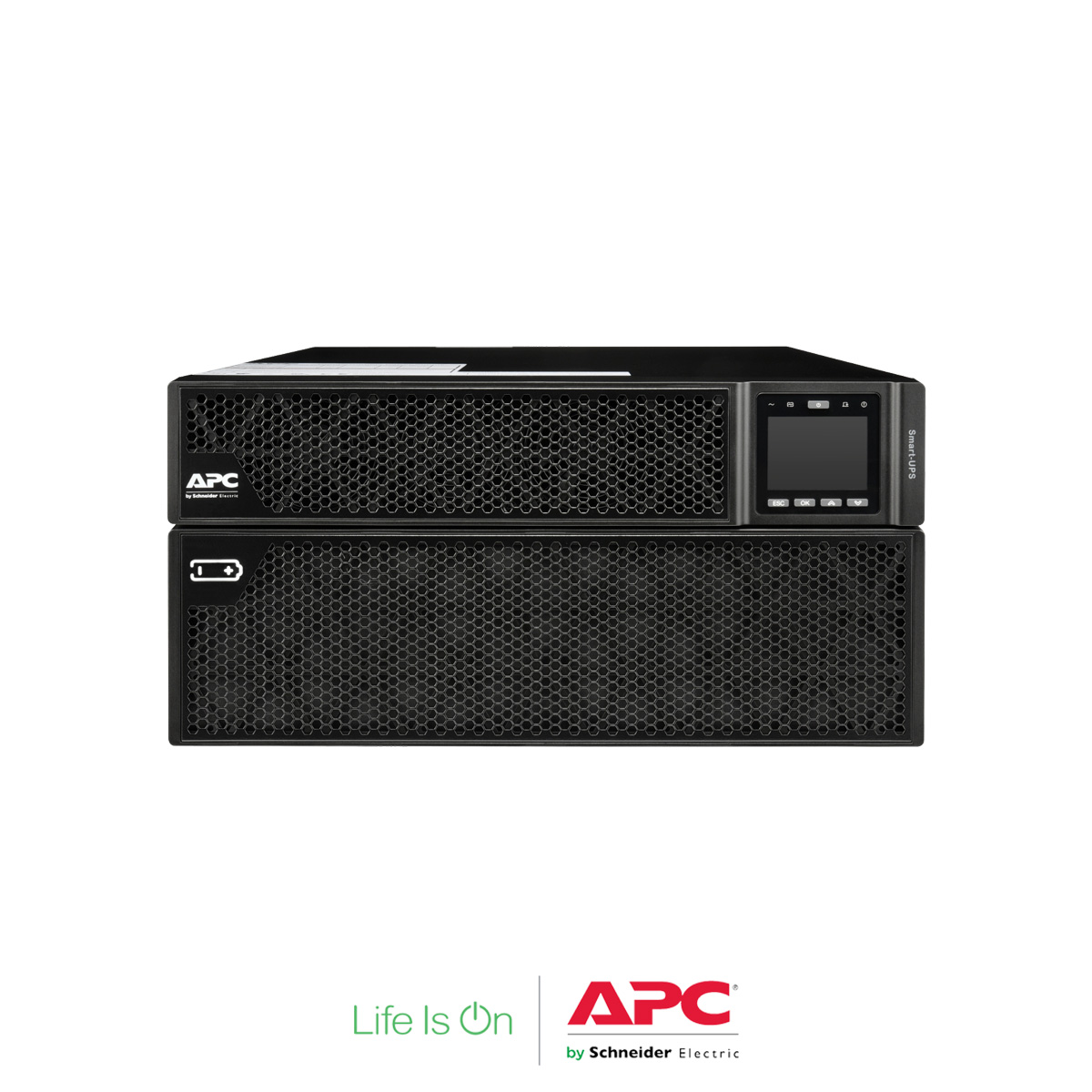

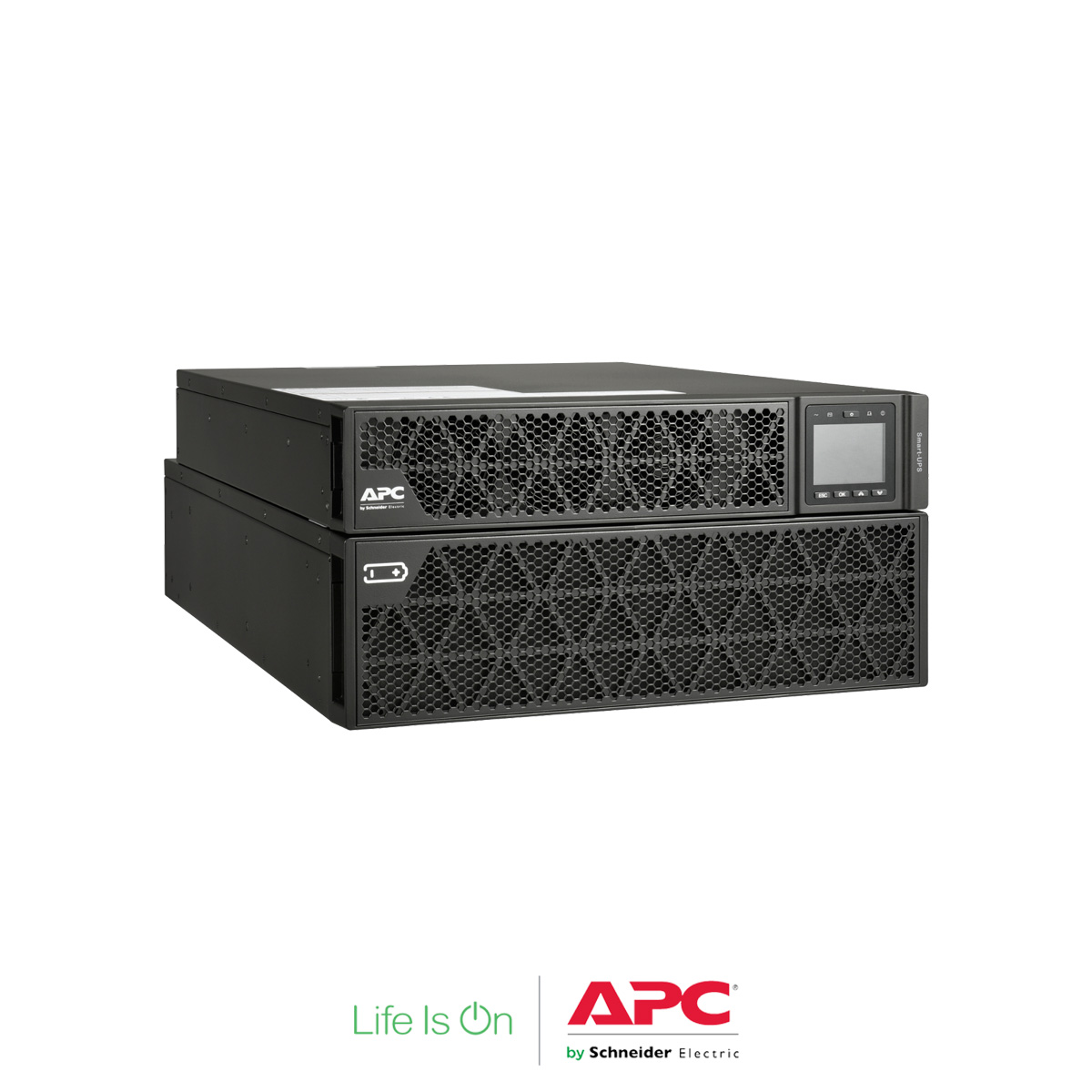

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit
Model: SRTG8KXLI
| Overview | |
| Lead time | Usually in Stock |
| Main | |
| Main input voltage | 230 V |
| Other input voltage | 220 V 240 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 8000 W |
| Rated power in VA | 8000 VA |
| Output Connection type | 2 IEC 60320 C13 1 IEC 60320 C19 |
| Output Connector type | Hard wire 3-wire (H N + E) 1 |
| Battery type | Lead-acid battery |
| Provided equipment | Smart UPS signalling RS-232 cable User manual |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Height | 21.7 cm |
| Width | 44 cm |
| Depth | 68 cm |
| Net weight | 101.44 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 40…70 Hz auto-sensing |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160…285 V |
| Maximum input current | 30 A |
| Switching current capacity | 40 A |
| Output | |
| Maximum configurable power in W | 8000 W |
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Full load runtime | 00:04:48 8000 W |
| Half load runtime | 00:14:00 4000 W |
| Maximum configurable power in VA | 8000 VA |
| Conformance | |
| product certifications | CE |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative Humidity | 0…95 % non-condensing |
| Operating altitude | 0…6600 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | Non-condensing 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1774 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Run Time Graph |
| Efficiency | View Efficiency Graph
|
| Number of batteries filled slots | 2 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery voltage | +/- 96 V |
| Battery charger power | 392 W rated |
| Battery power in VAH | 1680 VAh capacity 1680VAh runtime |
| Battery life | 3…5 year(s) |
| Battery option | SRTG192XLBP4 1 3456 VAh SRTG192XLBP4 2 5279 VAh SRTG192XLBP4 3 6804 VAh SRTG192XLBP4 4 9126 VAh |
| Extended runtime | 1 |
| Communications & Management | |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Control panel | LED Status display with on line : on battery Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Package 1 Length | 59 cm |
| Number of Units in Package 1 | 1 |
| Package 1 width | 79 cm |
| Package 1 Height | 41.4 cm |
| Package 1 Weight | 103.46 kg |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
