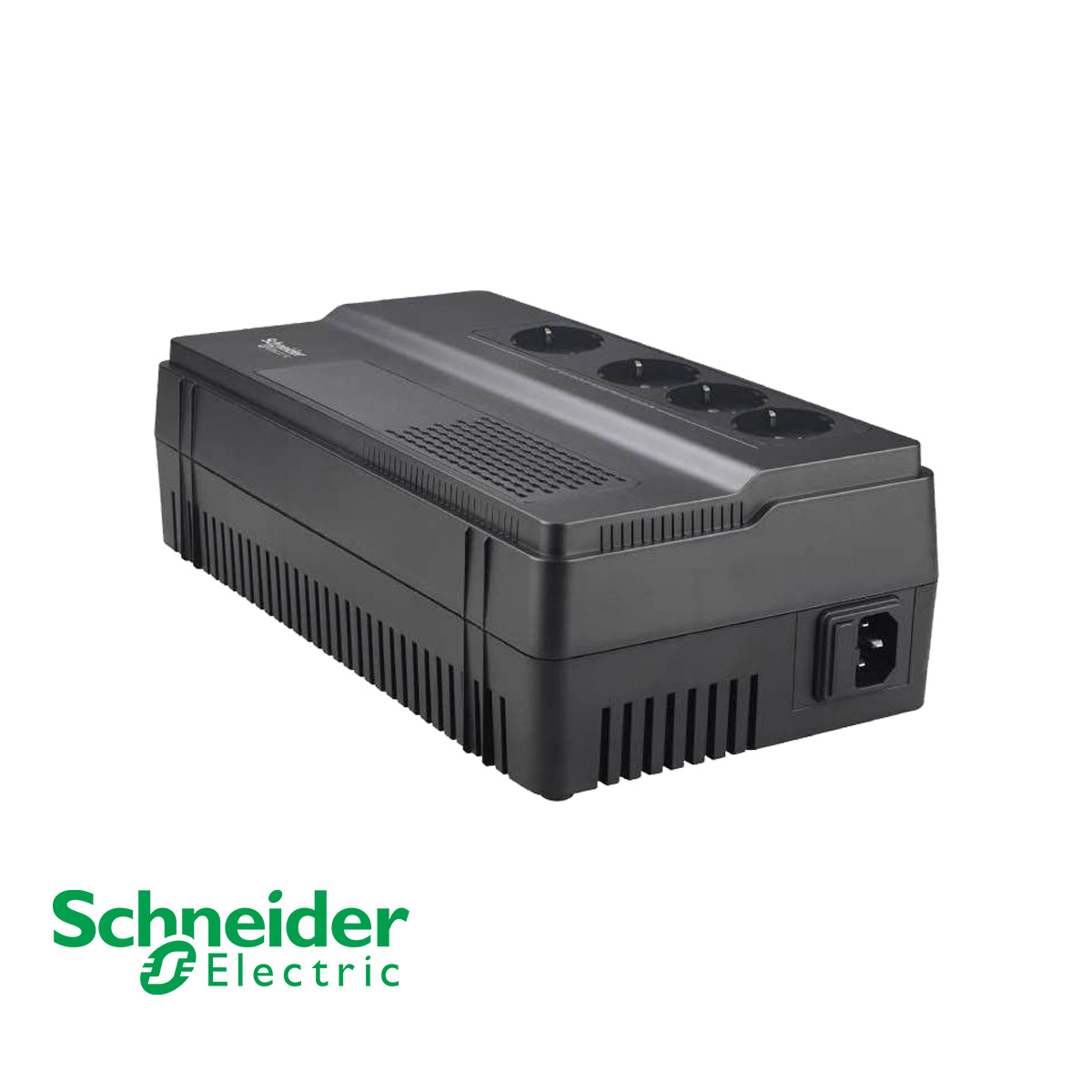

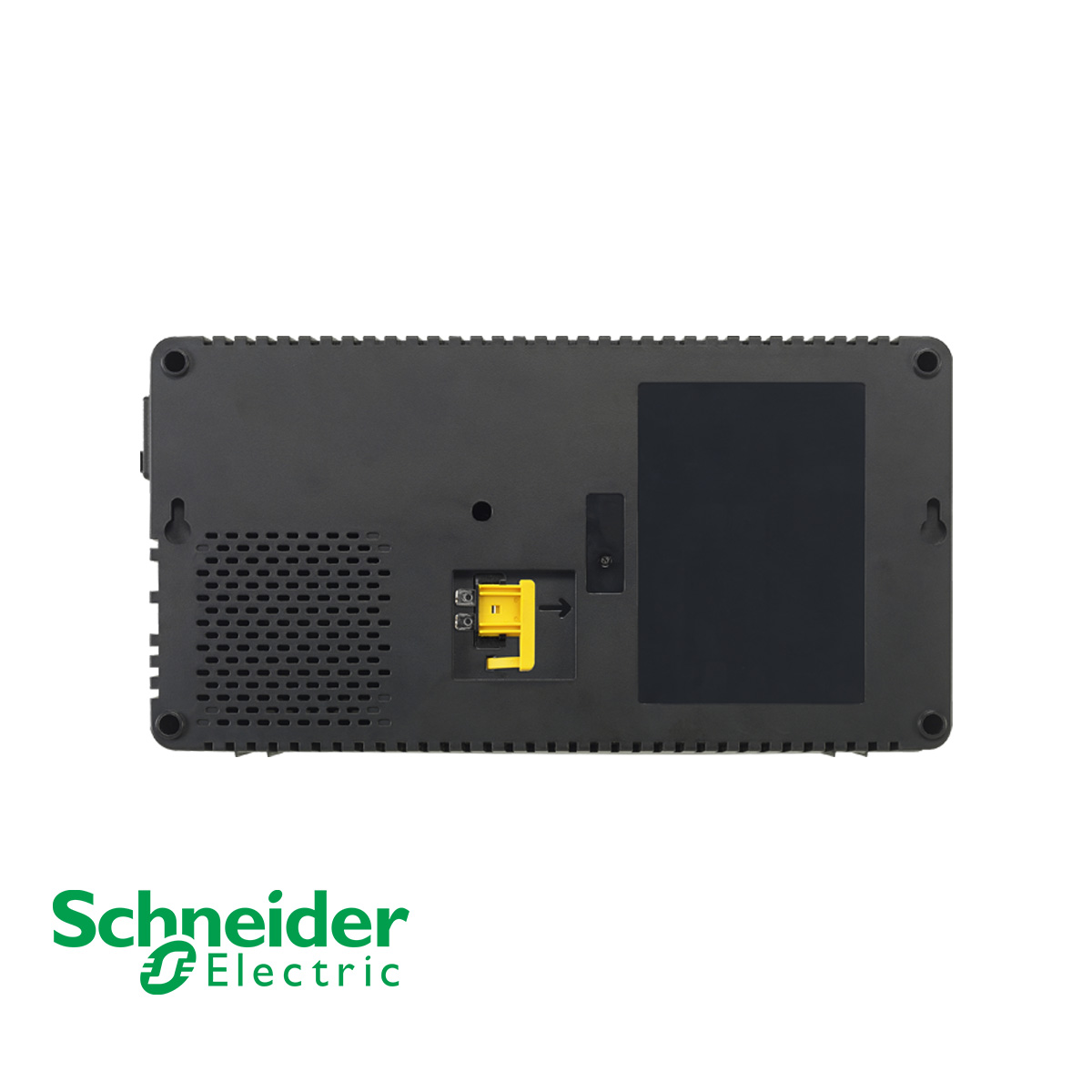

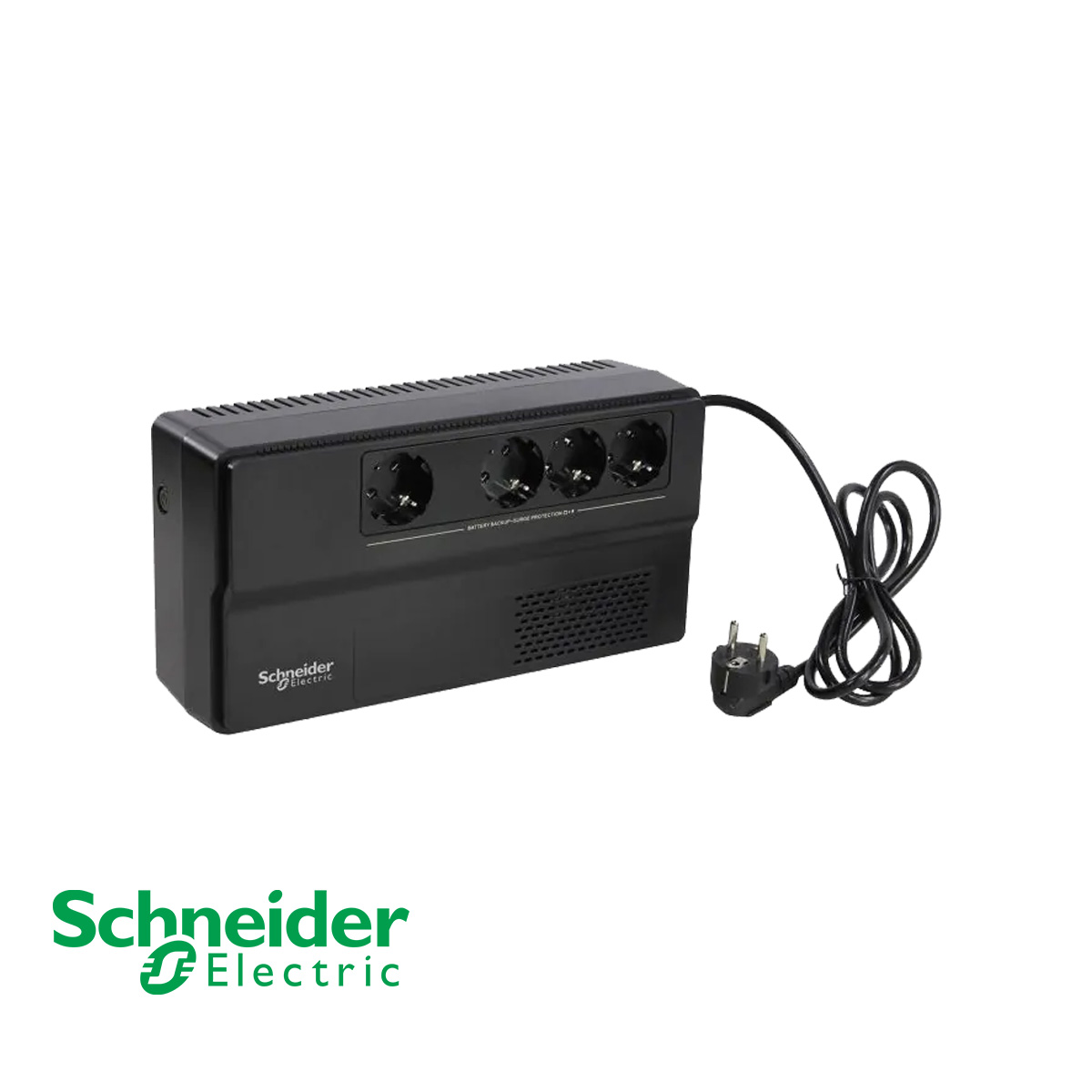

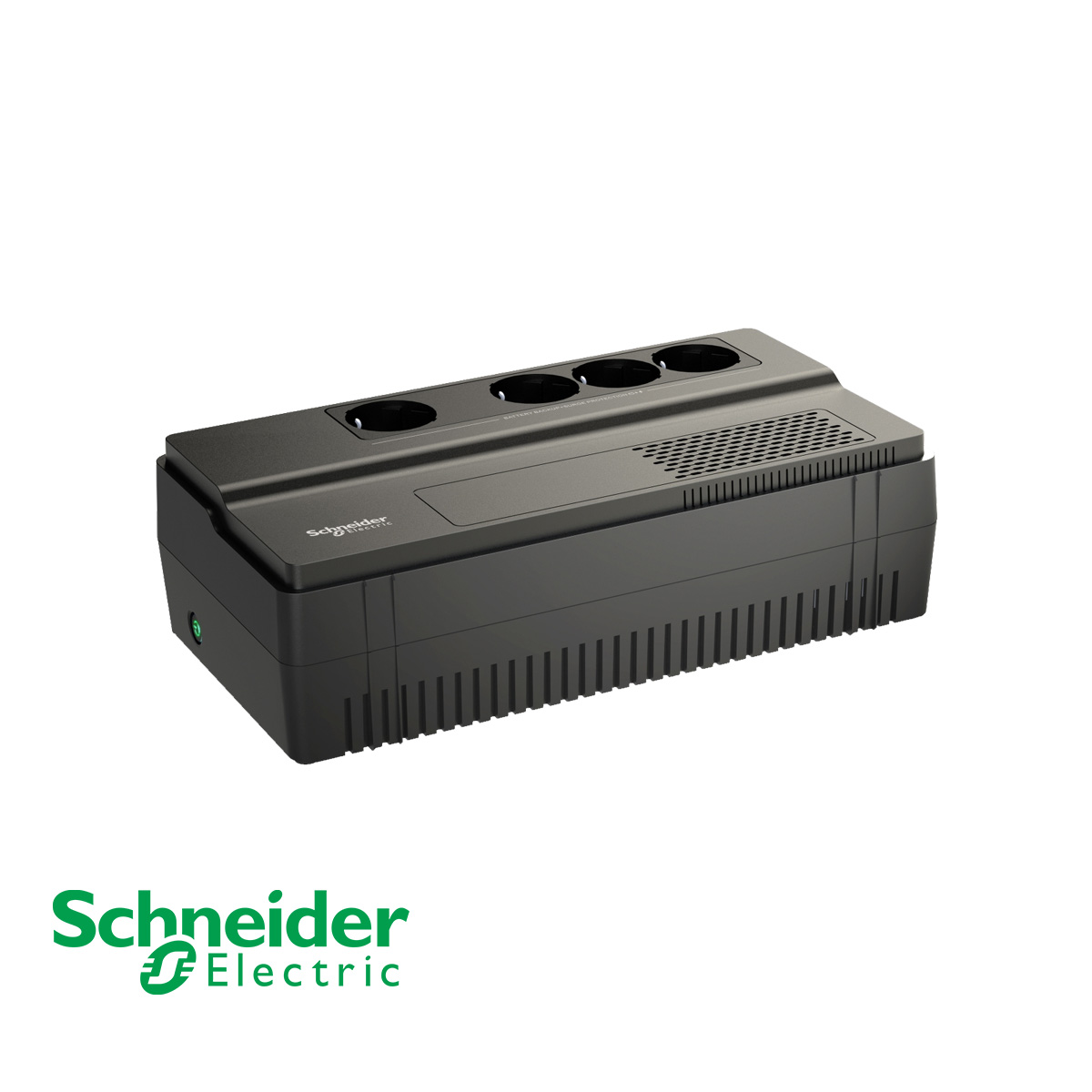

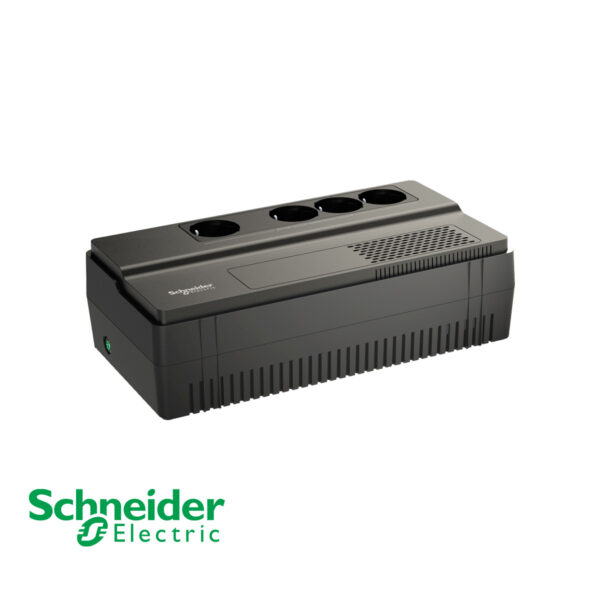

Schneider Electric EASY UPS BVS 800 VA

Model: BVS800I-GR

نظرة عامة
التوافر	Usually in Stock

Main
Product or component type	Uninterruptible power supply (UPS)
Battery type	Lead-acid battery
Topology	Line interactive
Quantity per set	Set of 1
Reset Automatic reset	Automatic reset
Range of product	Easy UPS 1Ph BVS Series

Complementary
Type of installation	Indoor
Surge energy	156 J
Type of signal	Stepped approximation to a sinewave
Protection device type	Surge protection device (SPD) Miniature circuit breaker (MCB)
Protection type	Fuse protection
Input voltage	230 V AC
Output voltage	230 V AC
IP degree of protection	IP20
Transfer time	6 ms typical : 10 ms maximum
Network frequency	45…65 Hz
Power range	800 VA 450 W
Electrical connection	Input: 1 inlet Schuko CEE 7/P Output: 4 outlet Schuko CEE 7
Local signalling	Alarm, distinctive for low battery Alarm, continuous or intermittent tone for overload LED for battery status
Number of batteries	1
Charging time	8 h
Battery voltage	12 V
Battery capacity	7.0 Ah
Battery life	5 year(s)
Net weight	5.3 kg
Height	92.5 mm
Width	160.5 mm
Depth	305 mm

Environmental
Relative humidity	0…95 % non-condensing
Operating altitude	0…6561 ft
Ambient air temperature for operation	0…40 °C
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Product certifications	CE

Physical

Mounting support

Wall

Floor

Contractual warranty
Warranty	2 years
